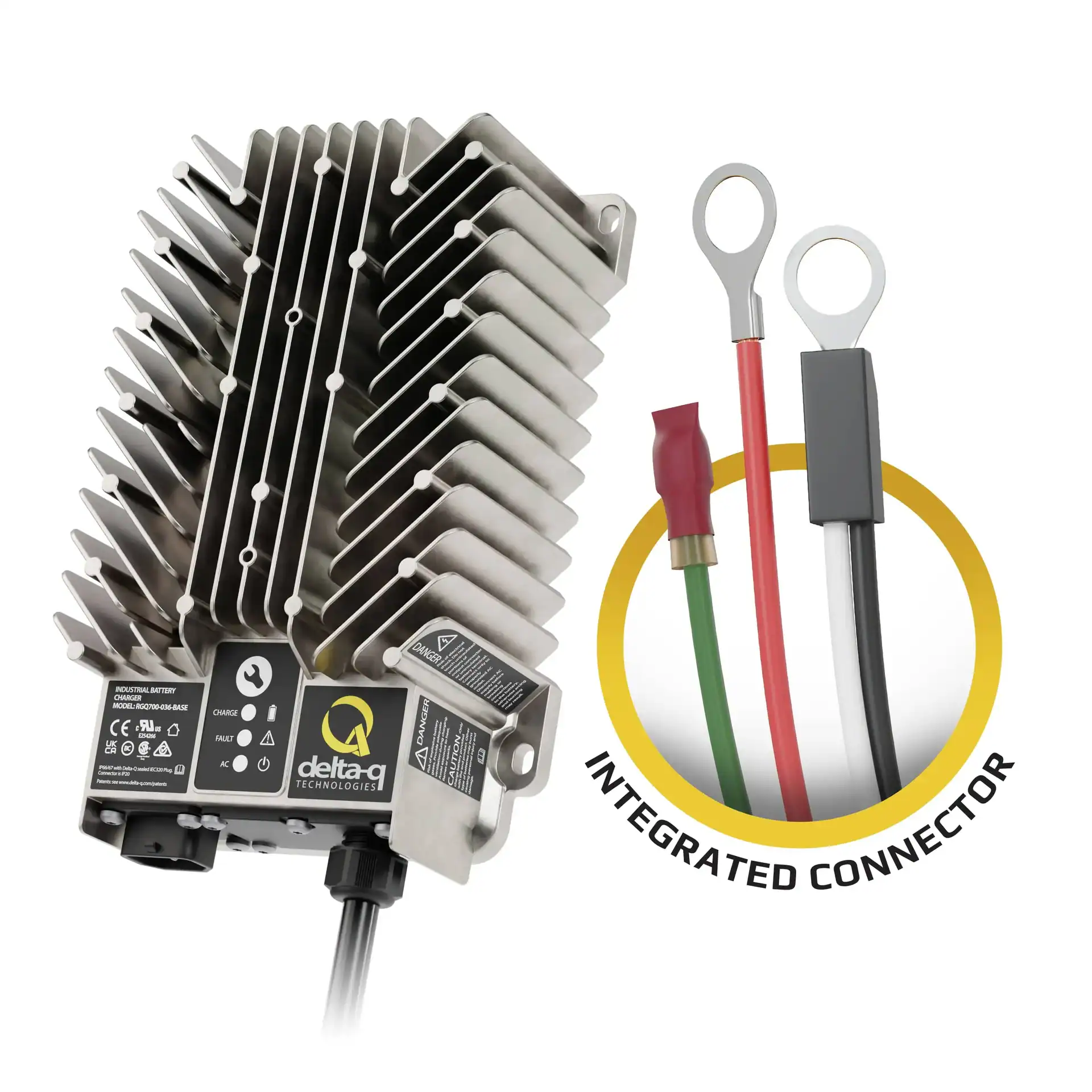

Delta-Q RQ700 Series
| MFG Part #961-0008
Industrial Battery Charger
961-4800
Display Units
Imperial
Metric
AC Input Connector
IEC320 / C14 Universal AC Input
AC Input Voltage Range
85 – 270 VAC
AC Input Frequency
50/60 Hz
Nominal DC Output Voltage
48V
Maximum DC Output Current
15 Amps
Maximum DC Output Power
700 Watts
DC Output Connector
1.84m (6.0') Ring Terminal, Temp Sense, Interlock
Configuration
BASE
Battery Type
Lead Acid (Wet / AGM / GEL), Lithium Ion
Enclosure
IP67 (NEMA6)
CANbus Function
CANopen & J1939 Protocols
Cooling Method
Convection Cooled
Dimensions
9.0 x 5.9 x 3.14 in
Weight
6.2 lbs.
AC Input Connector
IEC320 / C14 Universal AC Input
AC Input Voltage Range
85 – 270 VAC
AC Input Frequency
50/60 Hz
Nominal DC Output Voltage
48V
Maximum DC Output Current
15 Amps
Maximum DC Output Power
700 Watts
DC Output Connector
1.84m (6.0') Ring Terminal, Temp Sense, Interlock
Configuration
BASE
Battery Type
Lead Acid (Wet / AGM / GEL), Lithium Ion
Enclosure
IP67 (NEMA6)
CANbus Function
CANopen & J1939 Protocols
Cooling Method
Convection Cooled
Dimensions
230 x 150 x 80 mm
Weight
2.8 kg
