Delta-Q QuiQ 1000 Series
Industrial Battery Charger

912-3654

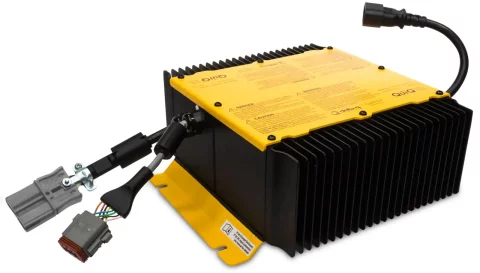

A yellow power supply on a white background.
Delta-Q QuiQ 1000 Series
Industrial Battery Charger

912-3654

Display Units
Imperial
Metric

AC Input Voltage Range

85 – 265 VAC

AC Input Frequency

45/65 Hz

Nominal DC Output Voltage

36V

Maximum DC Output Current

21.0 Amps

Maximum DC Output Power

875 Watts

DC Output Connector

2.5m (8.2') Anderson SB50 GREY

Dimensions

10.99.74.3 in

Weight

11.0 lbs.

AC Input Voltage Range

85 – 265 VAC

AC Input Frequency

45/65 Hz

Nominal DC Output Voltage

36V

Maximum DC Output Current

21.0 Amps

Maximum DC Output Power

875 Watts

DC Output Connector

2.5m (8.2') Anderson SB50 GREY

Dimensions

280246110 mm

Weight

5.0 kg
