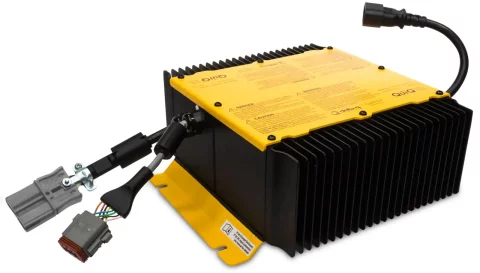

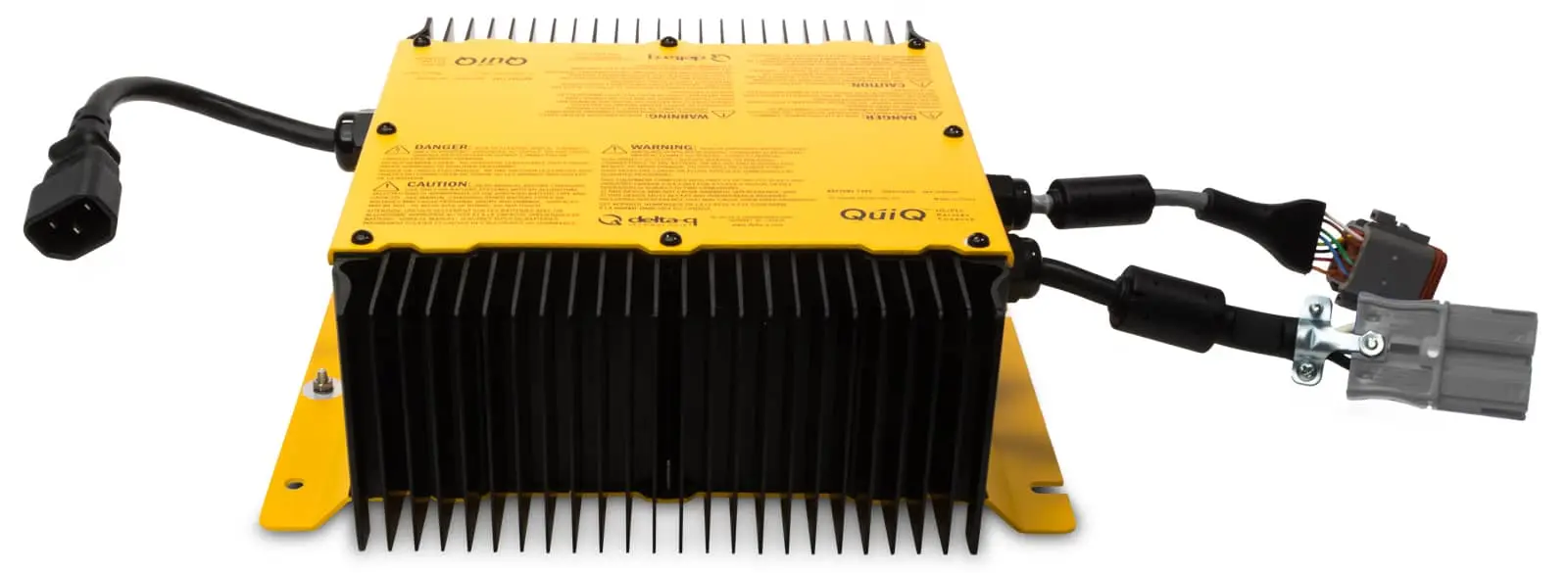

Delta-Q QuiQ 1000 Series
Industrial Battery Charger
912-3654
Display Units
Imperial
Metric
AC Input Voltage Range
85 – 265 VAC
AC Input Frequency
45/65 Hz
Nominal DC Output Voltage
36V
Maximum DC Output Current
21.0 Amps
Maximum DC Output Power
875 Watts

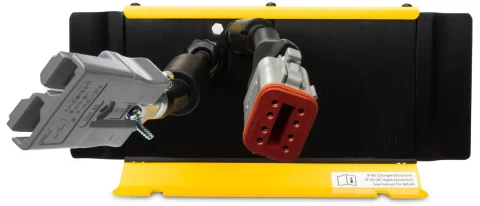

DC Output Connector
2.5m (8.2') Anderson SB50 GREY
Dimensions
10.9 x 9.7 x 4.3 in
Weight
11.0 lbs.
AC Input Voltage Range
85 – 265 VAC
AC Input Frequency
45/65 Hz
Nominal DC Output Voltage
36V
Maximum DC Output Current
21.0 Amps
Maximum DC Output Power
875 Watts
DC Output Connector
2.5m (8.2') Anderson SB50 GREY
Dimensions
280 x 246 x 110 mm
Weight
5.0 kg
