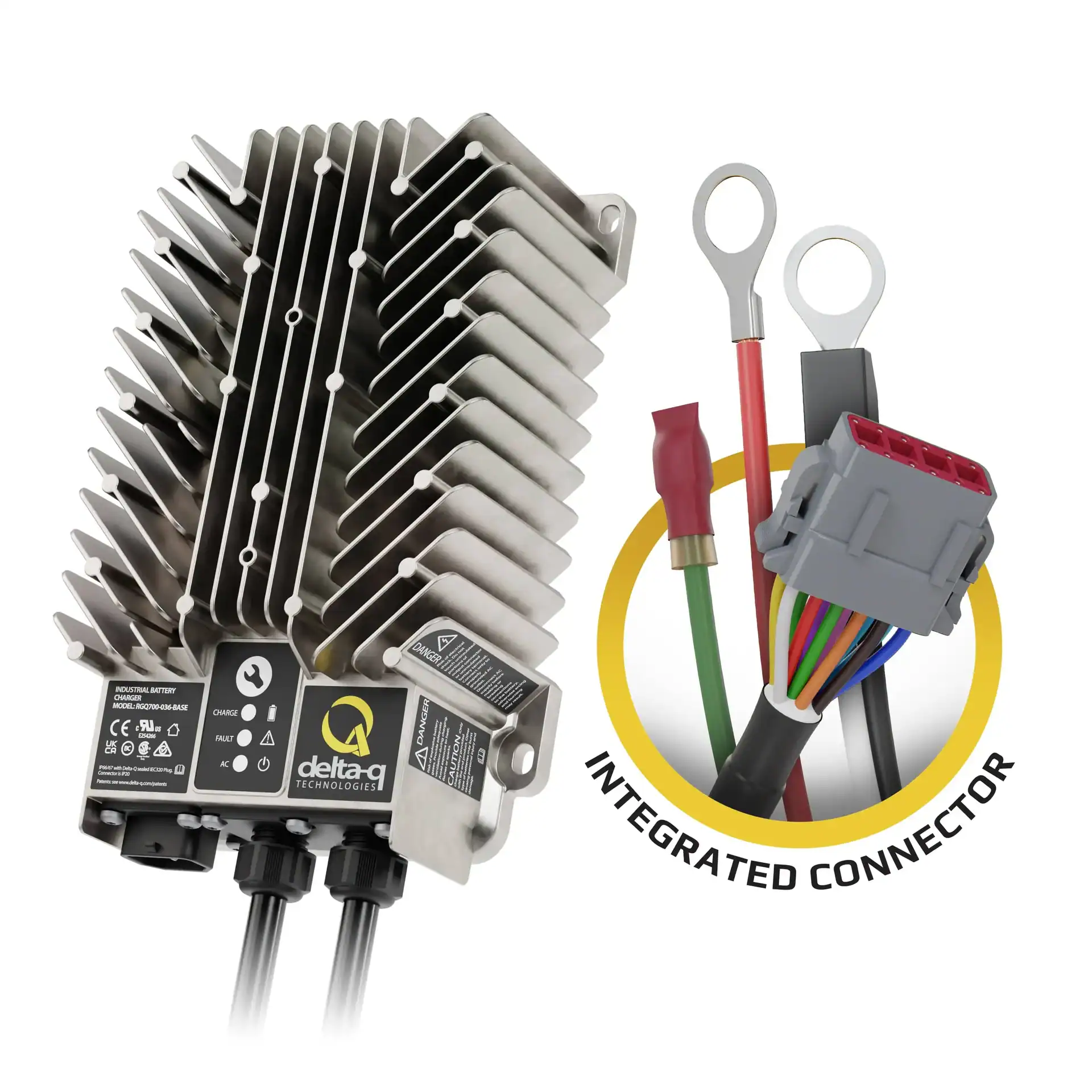

Delta-Q QuiQ 1000 Series
Industrial Battery Charger

912-2400-03

912-2400-03-1
Delta-Q QuiQ 1000 Series
Industrial Battery Charger

912-2400-03

Display Units
Imperial
Metric

AC Input Connector

IEC320 / C14 Universal AC Input (World Charger)

AC Input Voltage Range

85 – 265 VAC

Nominal AC Input Voltage

120 VAC / 230 VAC rms

AC Input Frequency

45/65 Hz

Nominal DC Output Voltage

24V

Maximum DC Output Current

25.0 Amps

Maximum DC Output Power

695 Watts

DC Output Connector

1.84m (6.0') Ring Terminal, Temp Sense, Interlock; 3.53m (10') LED

Dimensions

10.99.74.3 in

Weight

11.0 lbs.

AC Input Connector

IEC320 / C14 Universal AC Input (World Charger)

AC Input Voltage Range

85 – 265 VAC

Nominal AC Input Voltage

120 VAC / 230 VAC rms

AC Input Frequency

45/65 Hz

Nominal DC Output Voltage

24V

Maximum DC Output Current

25.0 Amps

DC Output Connector

1.84m (6.0') Ring Terminal, Temp Sense, Interlock; 3.53m (10') LED

Maximum DC Output Power

695 Watts

Dimensions

280246110 mm

Weight

5.0 kg
