Full Throttle Series
High-Performance AGM Battery

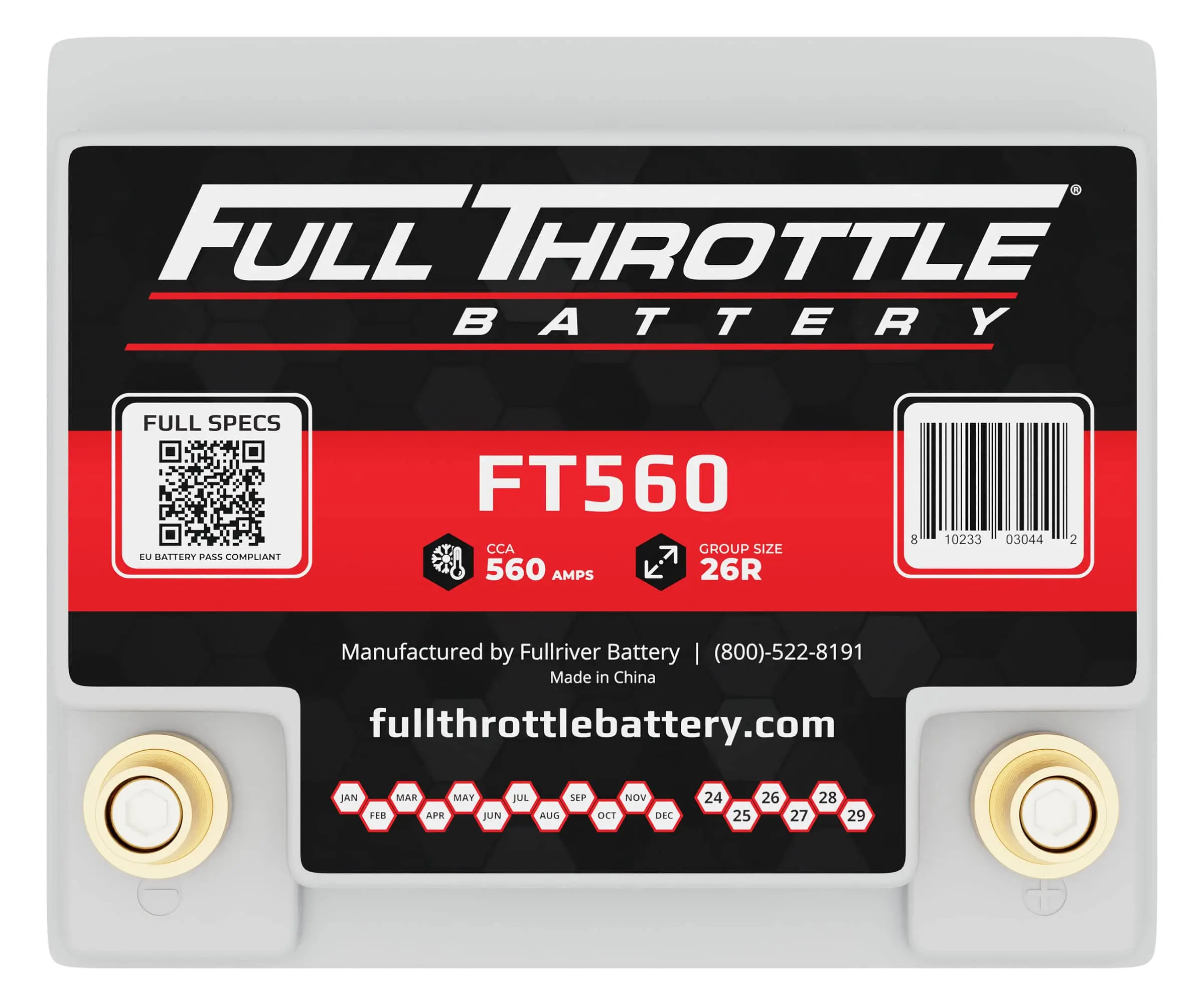

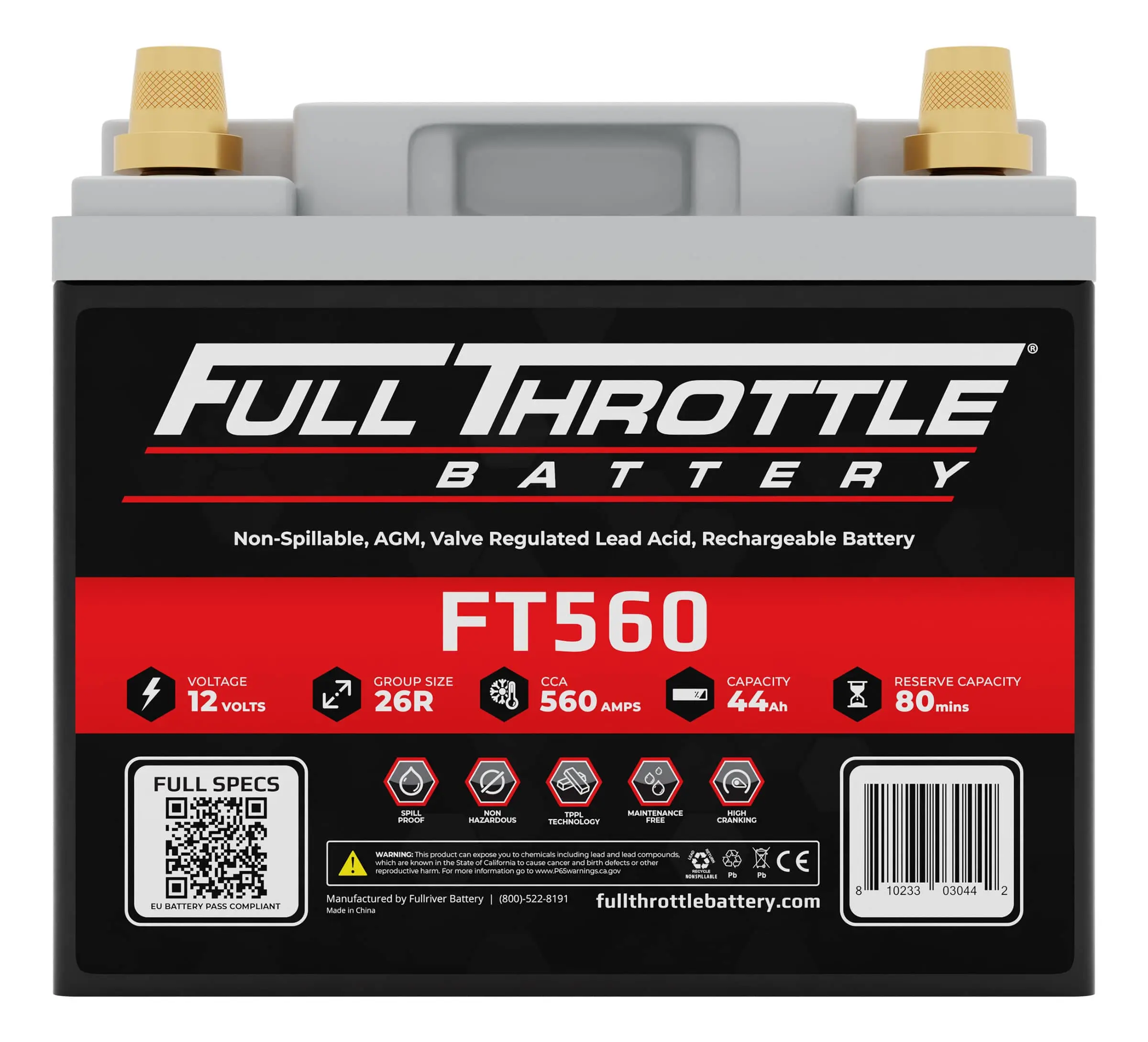

FT560
Display Units
Imperial
Metric
Group Size
26R [BCI]
Capacity
44 Ah
Reserve Capacity
80 min
14.2 min
CCA
560 Amps
Dimensions
7.80 x 6.54 x 7.09 in
Weight
33.29 lbs.
Group Size
26R [BCI]
Capacity
44 Ah
Reserve Capacity
80 min
14.2 min
CCA
560 Amps
Dimensions
198 x 166 x 180 mm
Weight
15.1 kg
UPC# 810233030442
/
ASIN# B07T27VHKW
Share this Battery
Full Throttle Series Batteries
High-Performance AGM
Full Throttle Series AGM batteries provide a combination of power, stability, and resilience to keep you running in the most extreme conditions.
Electrical Specifications
Nominal Voltage
12V
C100
48 Ah
C20
44 Ah
C5
35 Ah
CCA
560 Amps
CA or MCA
725 Amps
PHCA
1200 Amps
Internal Resistance
4.5 mΩ
Mechanical Specifications
Group Size
26R
Terminal Type
M6 + TP26 (SAE)
Terminal Torque
3.3 - 4.8
40 - 57.5
4.5 - 6.5
Height (w/ terminal)
7.09
/
180
Height (case only)
6.69
/
170
Width
6.54
/
166
Length
7.80
/
198
Weight
33.29
/
15.1
Case Type
ABS Plastic
